13 cm beacon project OH6SHF 2320.832 Mhz (not yet qrv at kp13gm !)
<br>
Everything built from surplus, except xtal ! Hopefully this can help others to start building uW beacons !

<br>
<br>

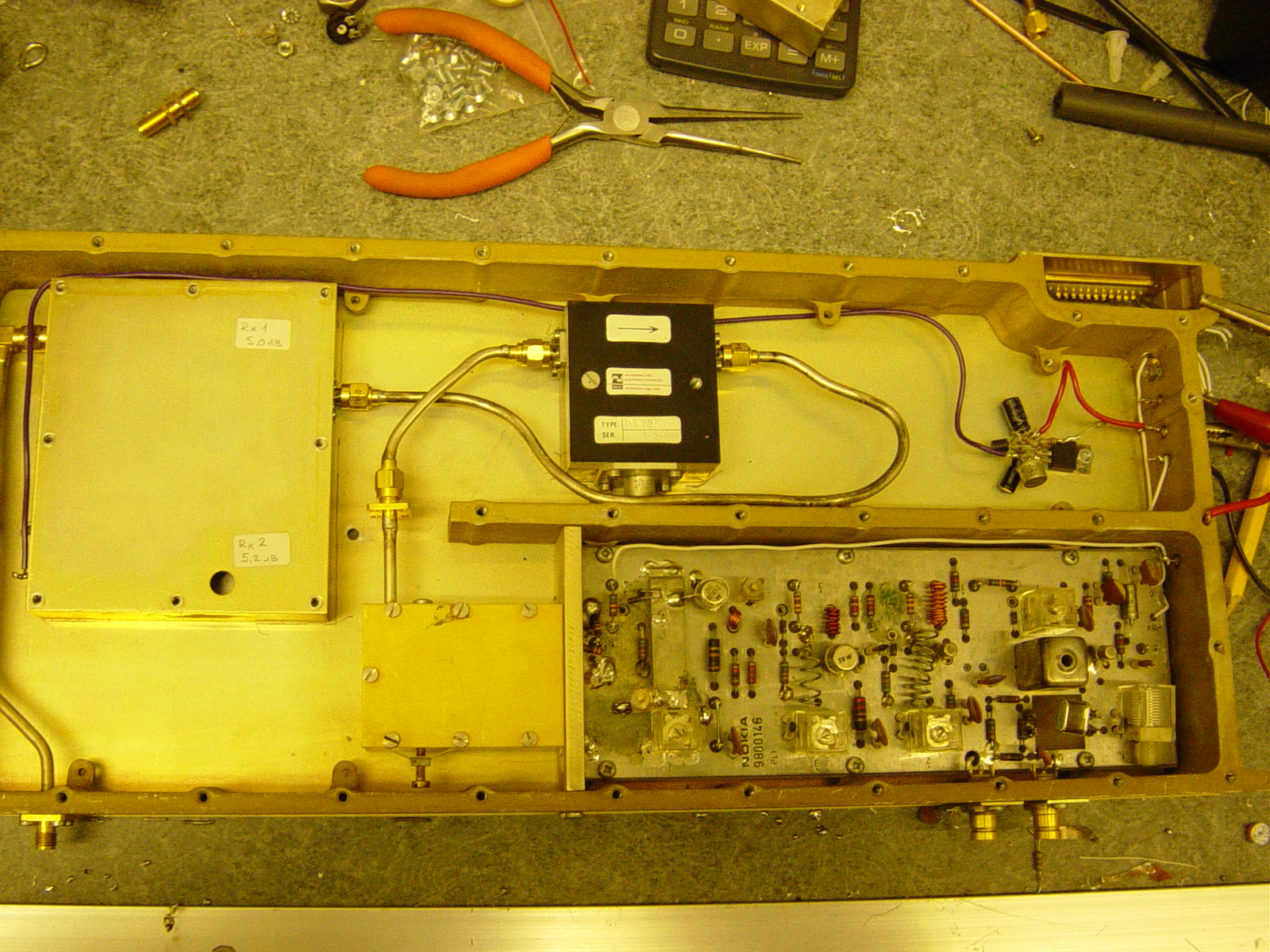

<a href="./2,3goh6shf1.JPG">Lo old 1,9g link. And keying amp 2 cascaded gasfetamps  </a>
<br>

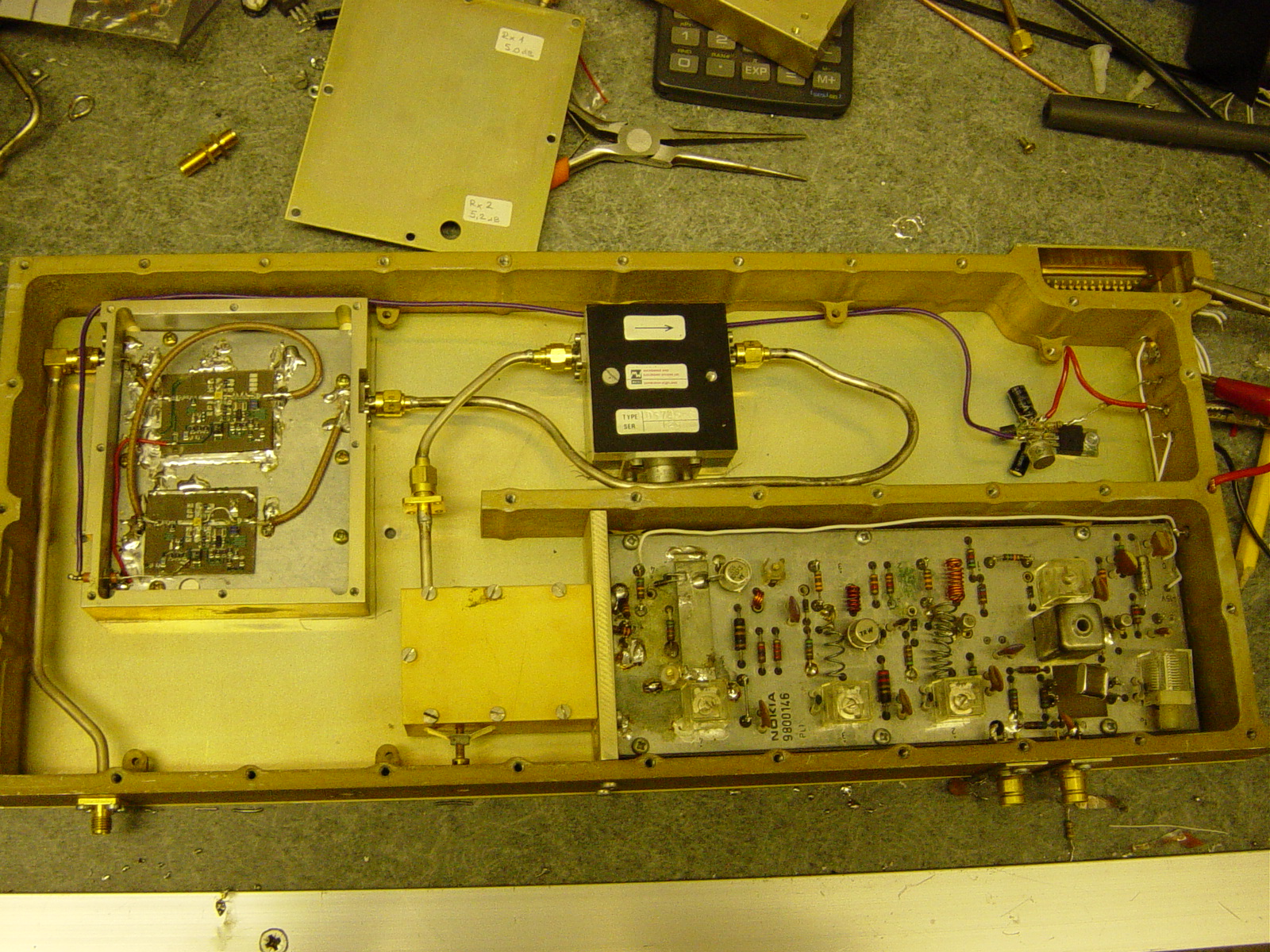

<a href="./2,3goh6shf2.JPG">Another picture, xtal heating not installed in this pic</a>
<br>

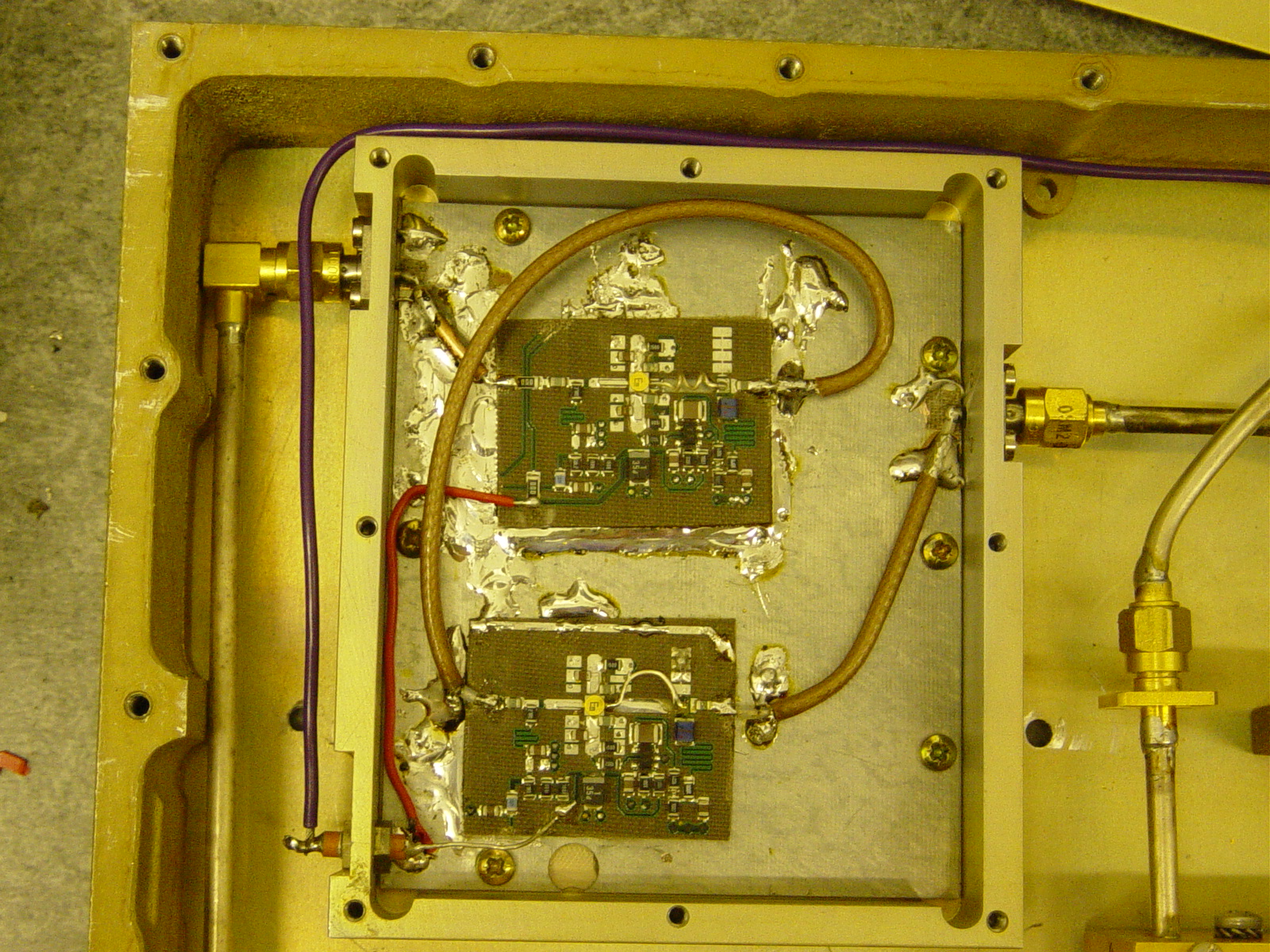

<a href="./2,3goh6shfkeyamp.JPG">Closeup of keying buffer, thanks SK0CT !</a>
<br>

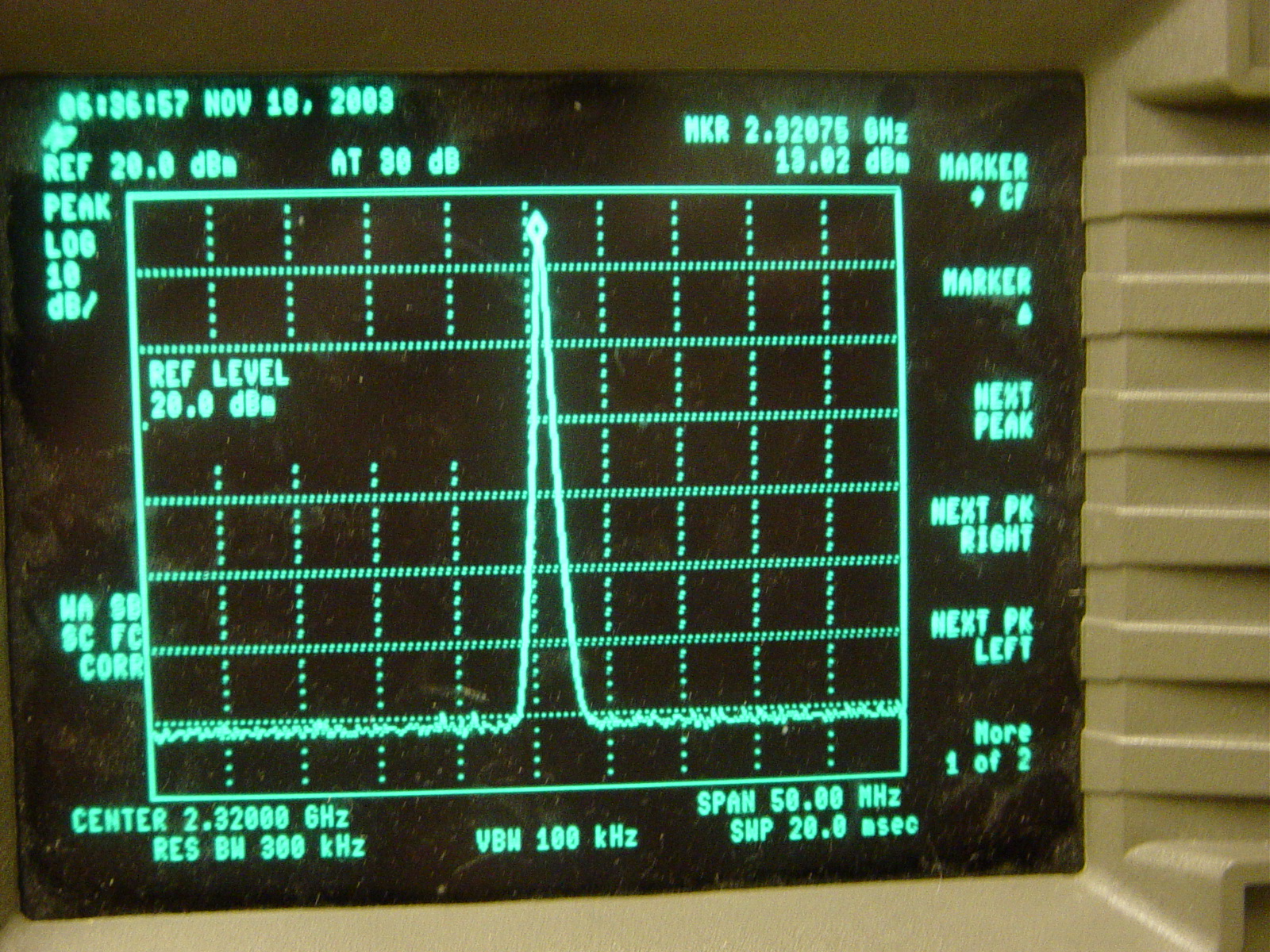

<a href="./2,3goh6shfkeyed.JPG">Output of keyed amplifier</a>
<br>

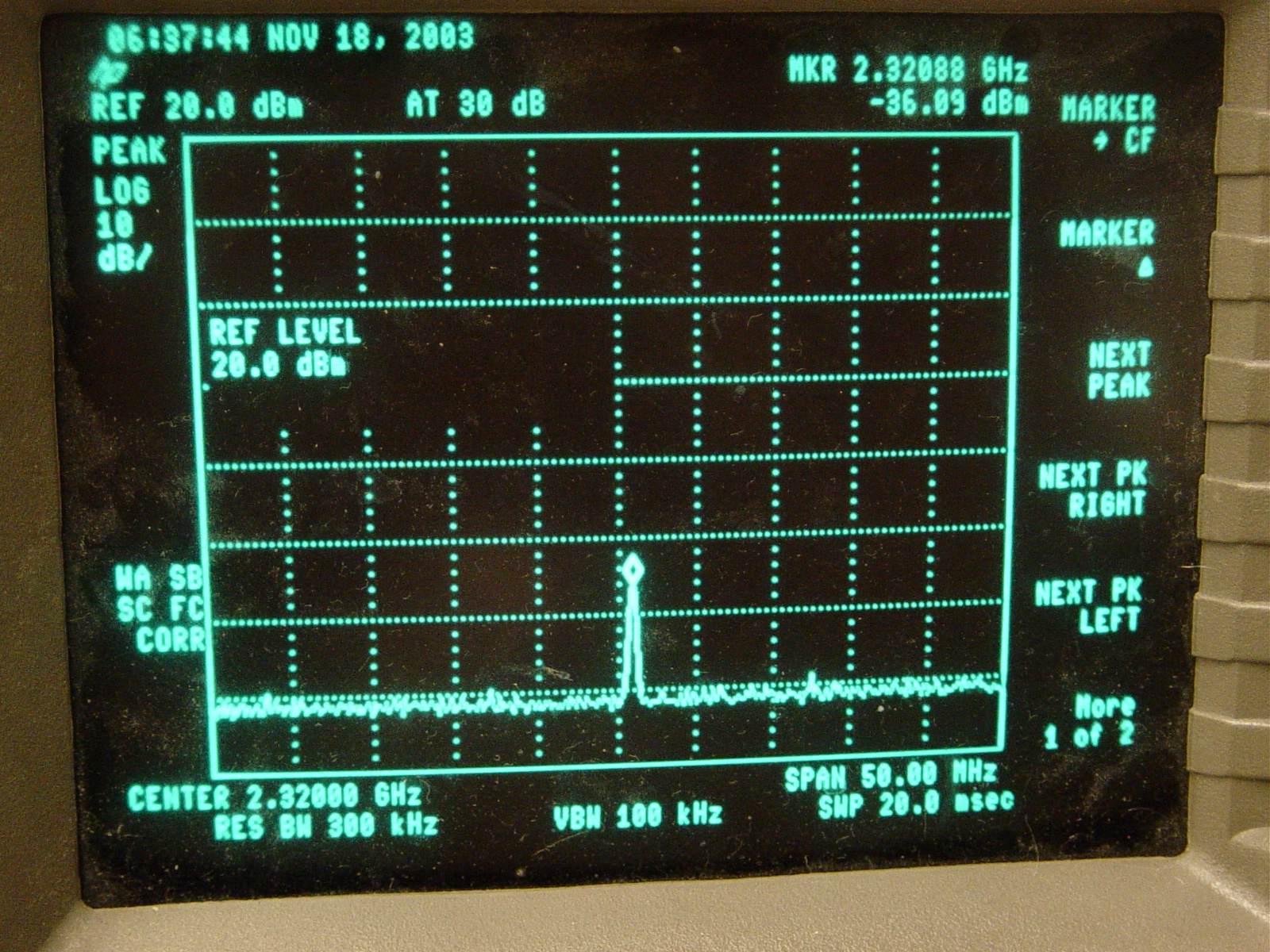

<a href="./2,3goh6shfunkeyed.JPG">Output of unkeyed amplifier, keyed/unkeyed isolation abt 50 dB</a>
<br>

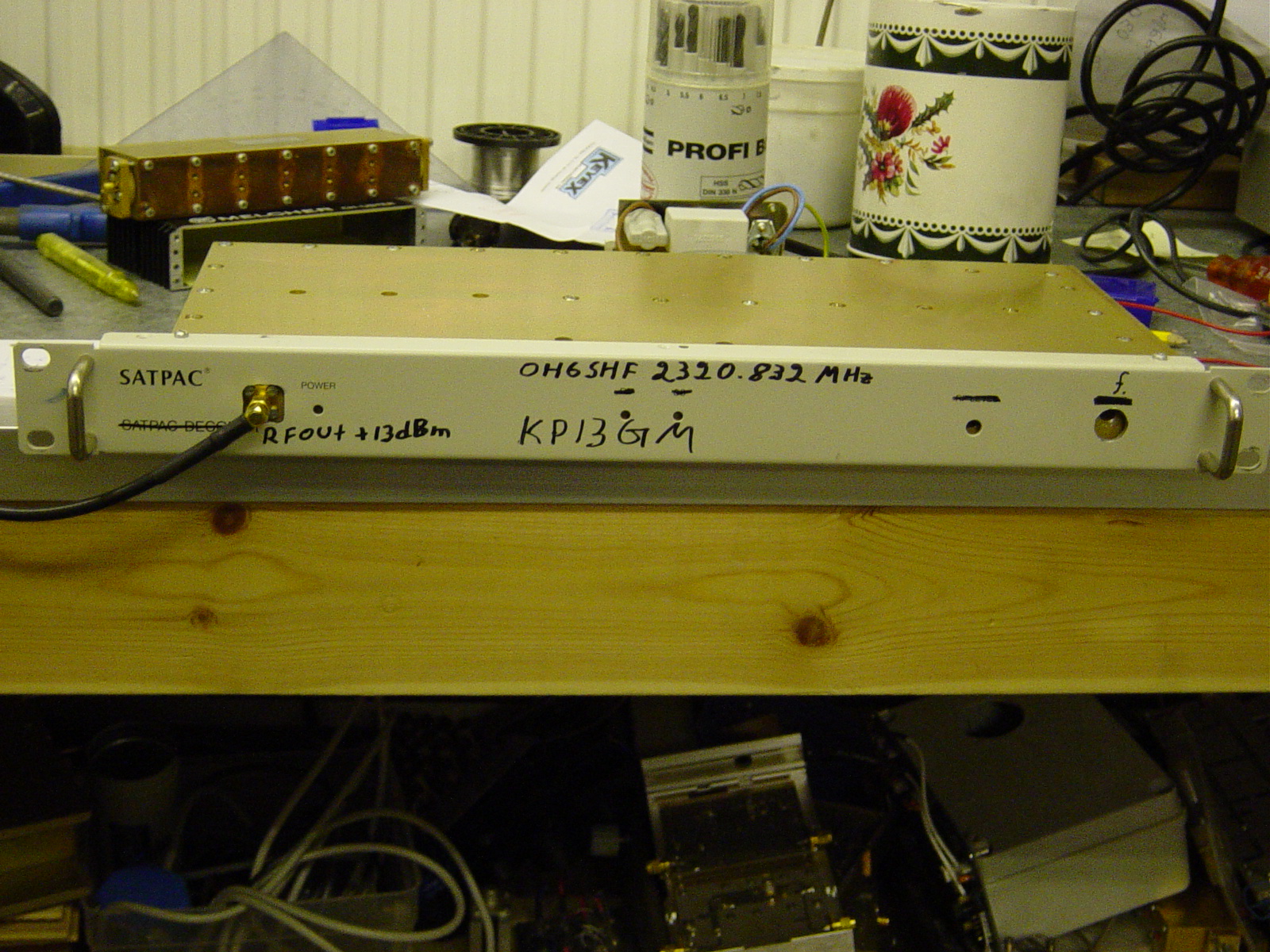

<a href="./2,3goh6shfpic2.JPG">Lo/keying buffer +little psu ready, filter and Pa vill be placed in another housing</a>
<br>

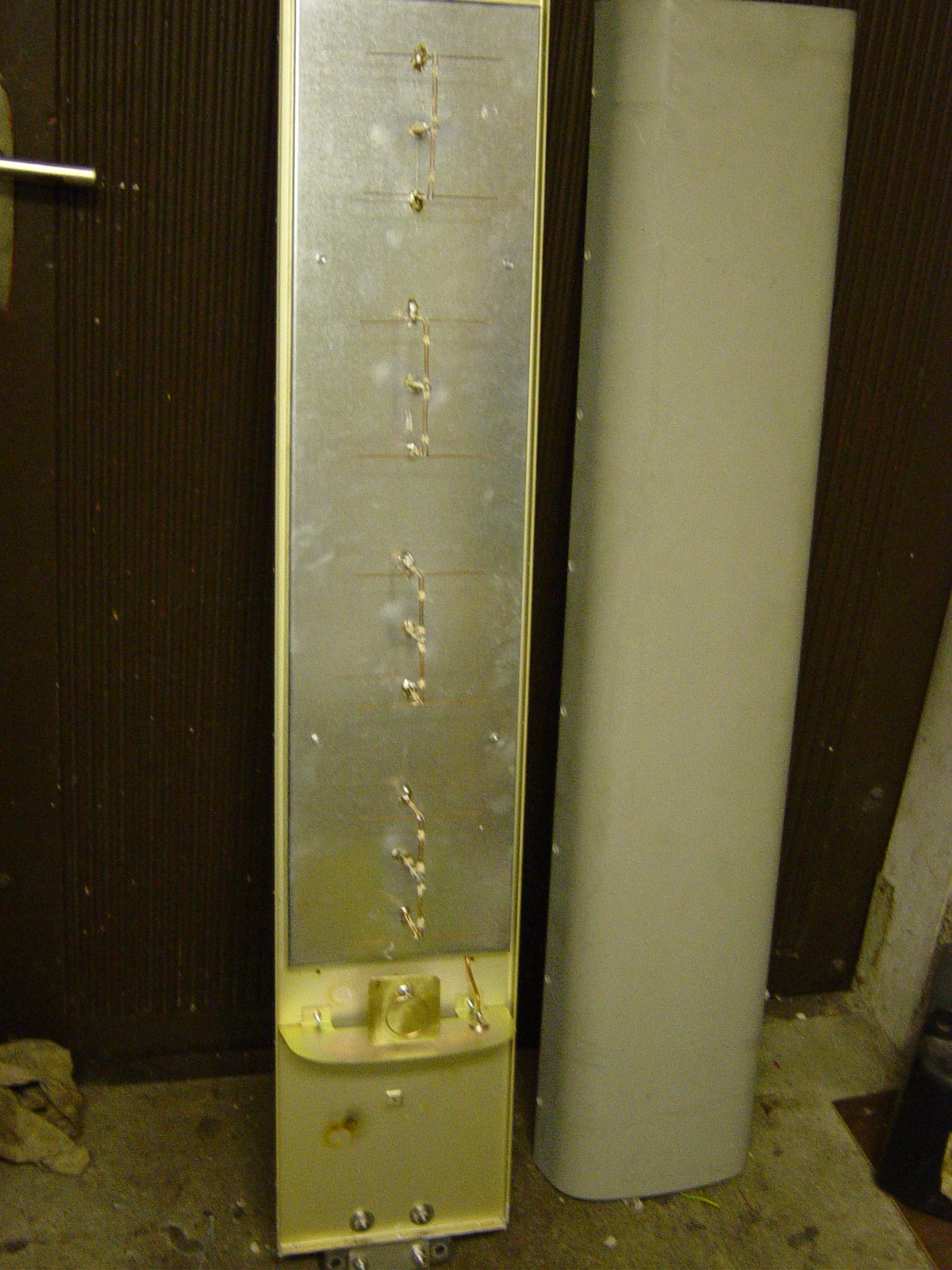

<a href="./antenna2.JPG">New beacon antenna, 23cm 4 stacked EIA dualdipole. 13 cm 1wl loop with reflector, place for 13cm amp below</a>
<br>

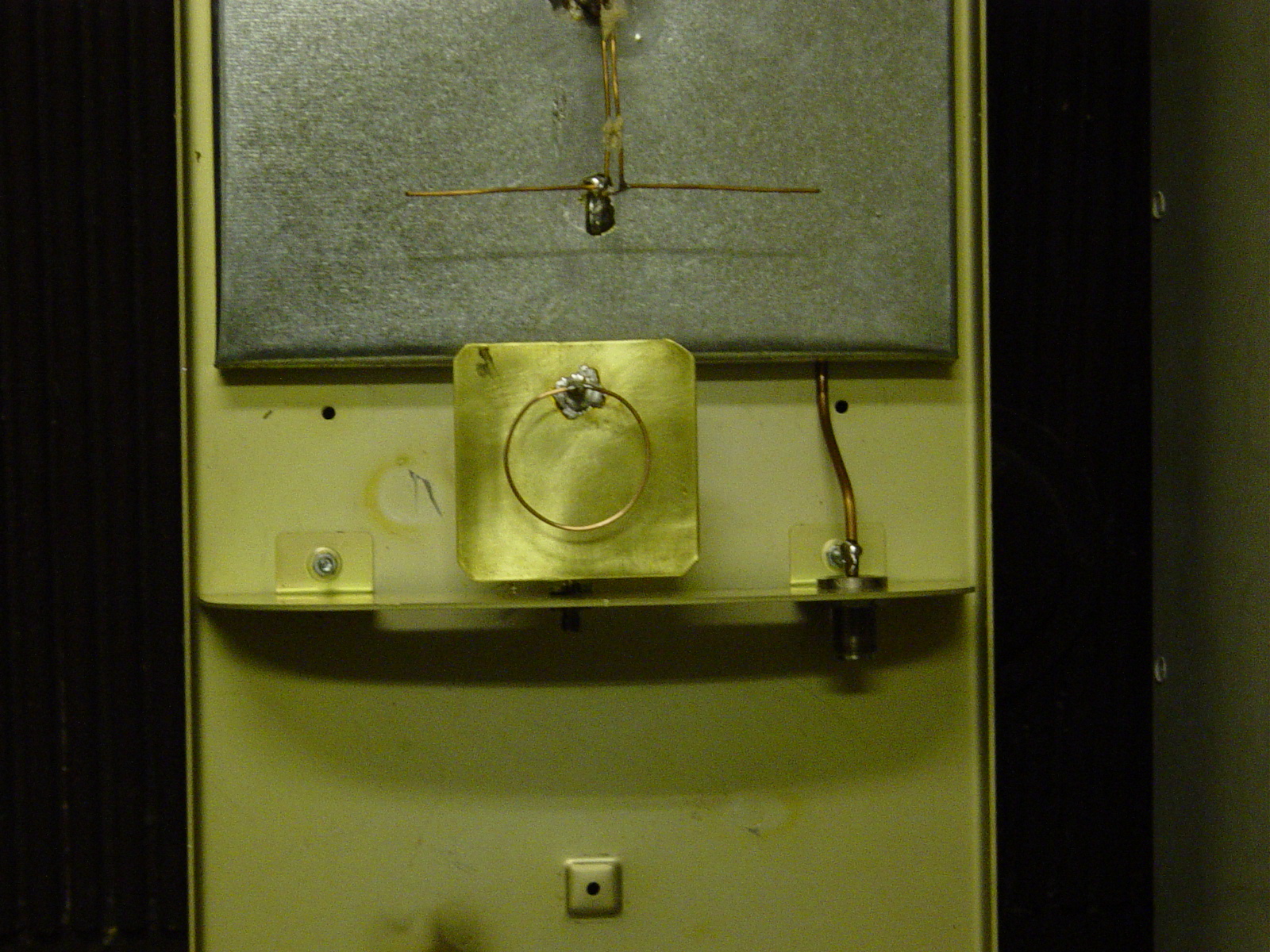

<a href="./antennaclose.JPG">Closeup of 13cm antenna, everything built in to old 900mhz kathrein housing</a>
